Proxy 서버 구축 실습
https://tomcat.apache.org/download-10.cgi
wget https://dlcdn.apache.org/tomcat/tomcat-10/v10.1.23/bin/apache-tomcat-10.1.23.zip
cat <<EOF > index.jsp
<%@ page contentType="text/html; charset=UTF-8"%>
<html>
<head><title>hello world</title></head>
<body>
<h2>
TOMCAT TEST<br><br>
time : <%= new java.util.Date()%>
<%@ page import="java.net.InetAddress" %><br>
<%InetAddress inet= InetAddress.getLocalHost();%>
WAS ip : <%=inet.getHostAddress()%>
</h2>
</body>
</html>
EOF
아래 코드를 복사해서 붙여넣기 하자!!
cat <<EOF > dbtest.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ page import="java.sql.*"%>
<h1>DB</h2>
<%
Connection conn=null;
try{
String Url="jdbc:mysql://<DB주소>/<DB이름>";
String Id="<DB유저>";
String Pass="<유저암호>";
Class.forName("com.mysql.jdbc.Driver");
conn=DriverManager.getConnection(Url,Id,Pass);
out.println("was-db Connection Success!");
}catch(Exception e) {
e.printStackTrace();
}
%>
EOF

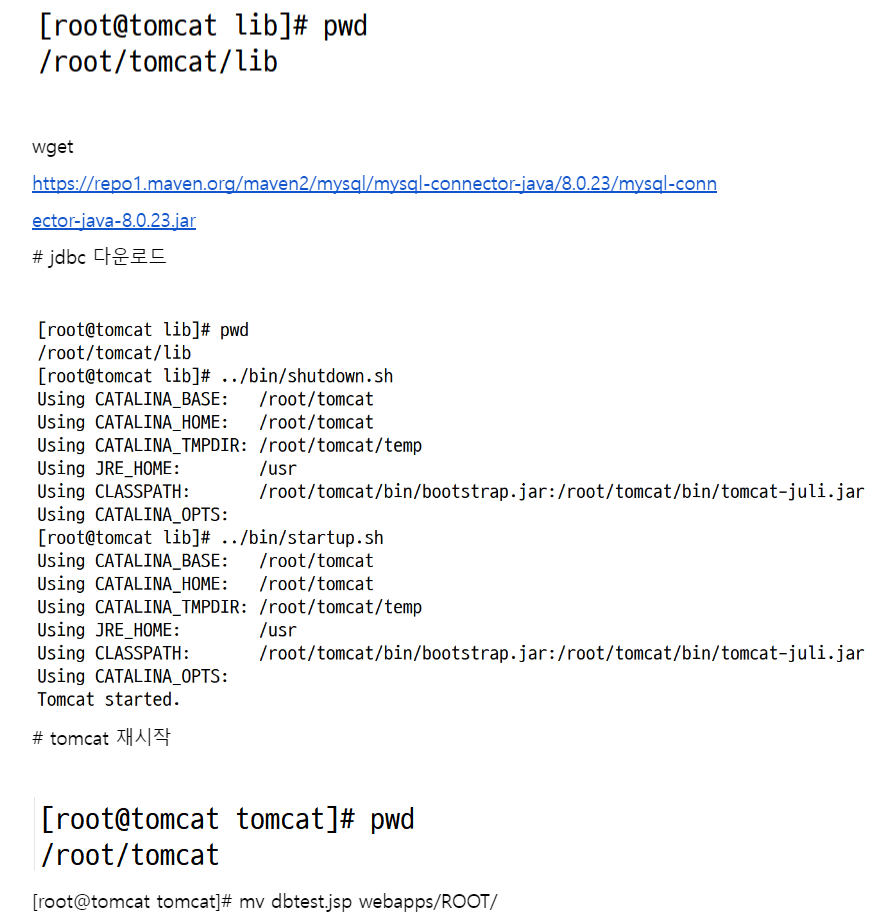

wget https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.25/mysql-connector-java-8.0.25.jar
아래의 코드를 복사해서 붙여넣기 하자!!
LoadModule proxy_connect_module modules/mod_proxy_connect.so
LoadModule proxy_module modules/mod_proxy.so
LoadModule proxy_http_module modules/mod_proxy_http.so
<VirtualHost *:80> # 80번 포트로 들어오는 모든 Ip에 대한 설정
ProxyRequests Off
ProxyPreserveHost On
<Proxy *>
Order deny,allow
Allow from all
</Proxy>
ProxyPass /tomcat http://211.183.3.222:8080/ disablereuse=on
ProxyPassReverse /tomcat http://211.183.3.222:8080/
</VirtualHost>
3-tier architecture 구축 실습
