[05.04] KVM 네트워크 인터페이스 추가(CLI환경), 종합실습

채소기 2024. 5. 4. 12:43

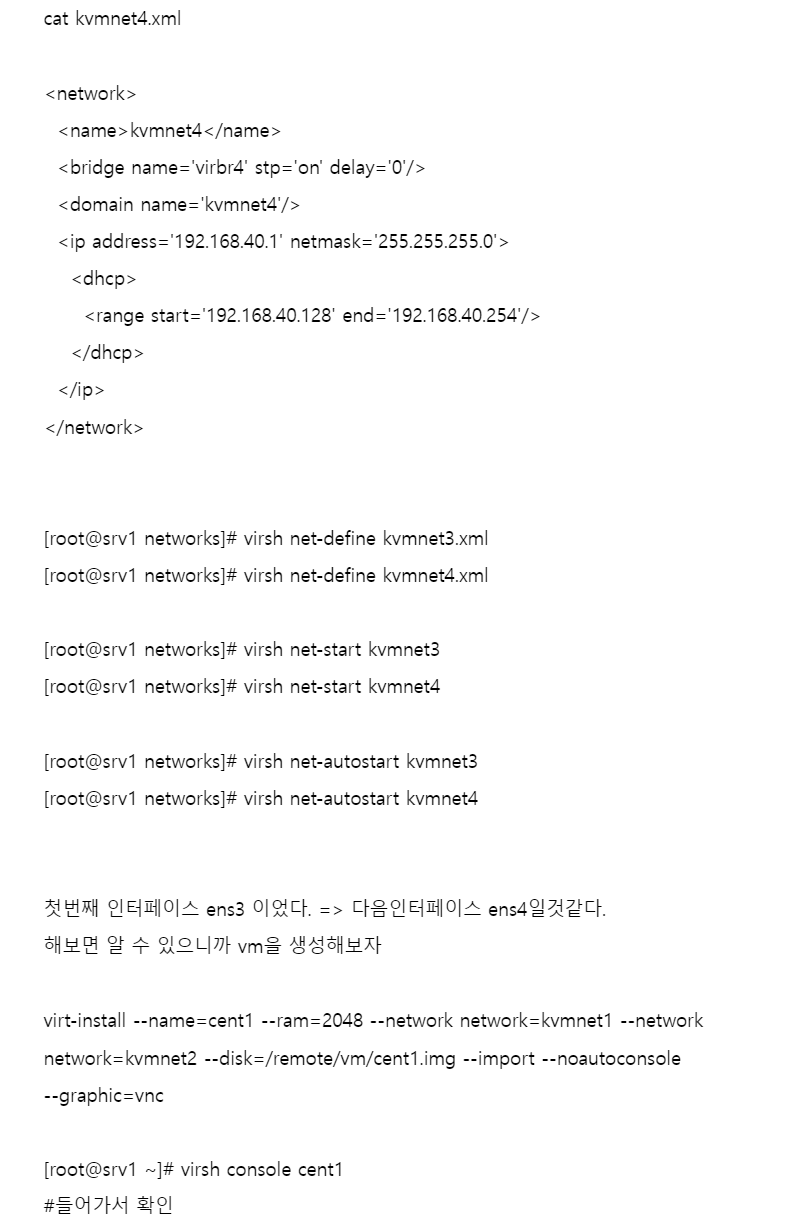

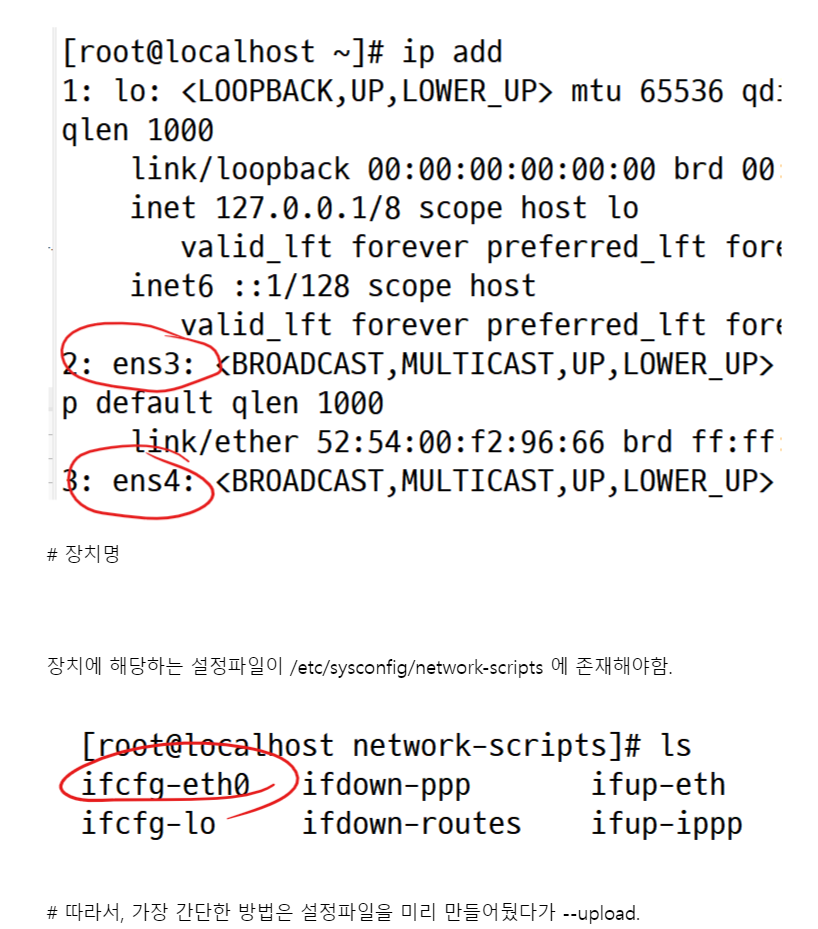

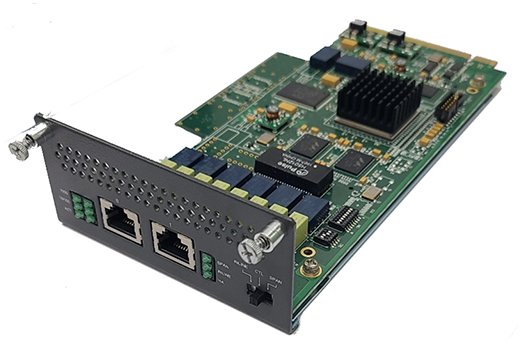

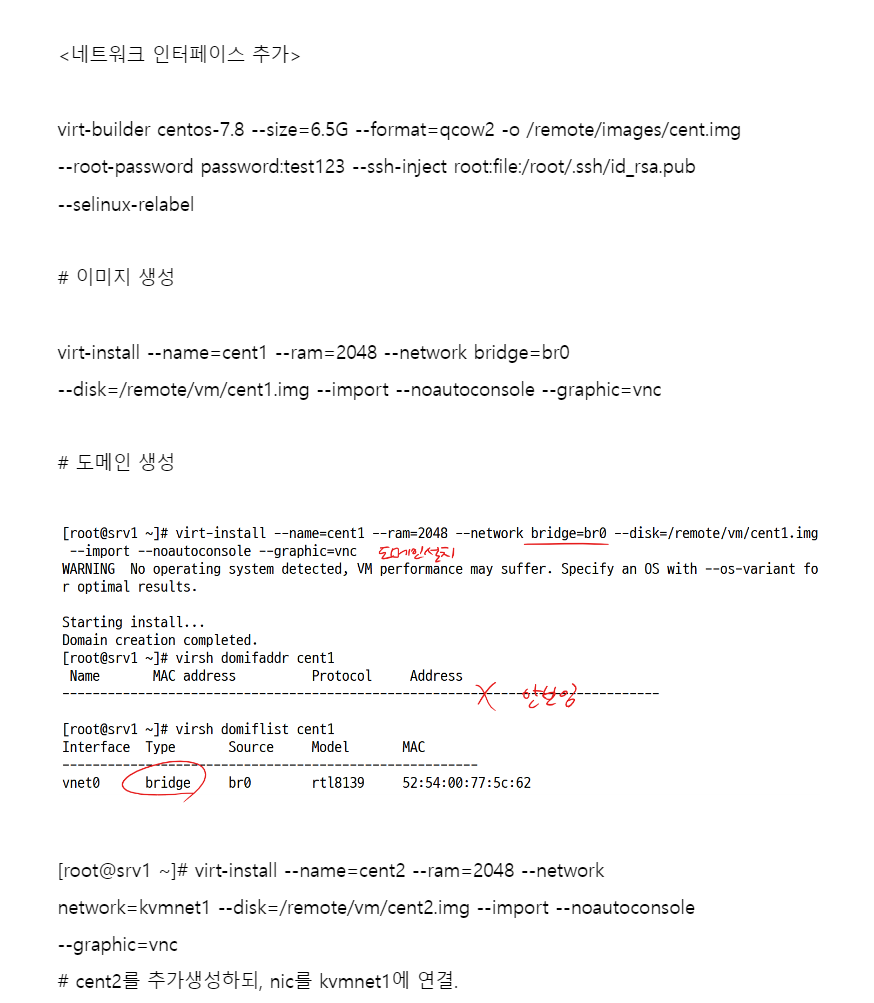

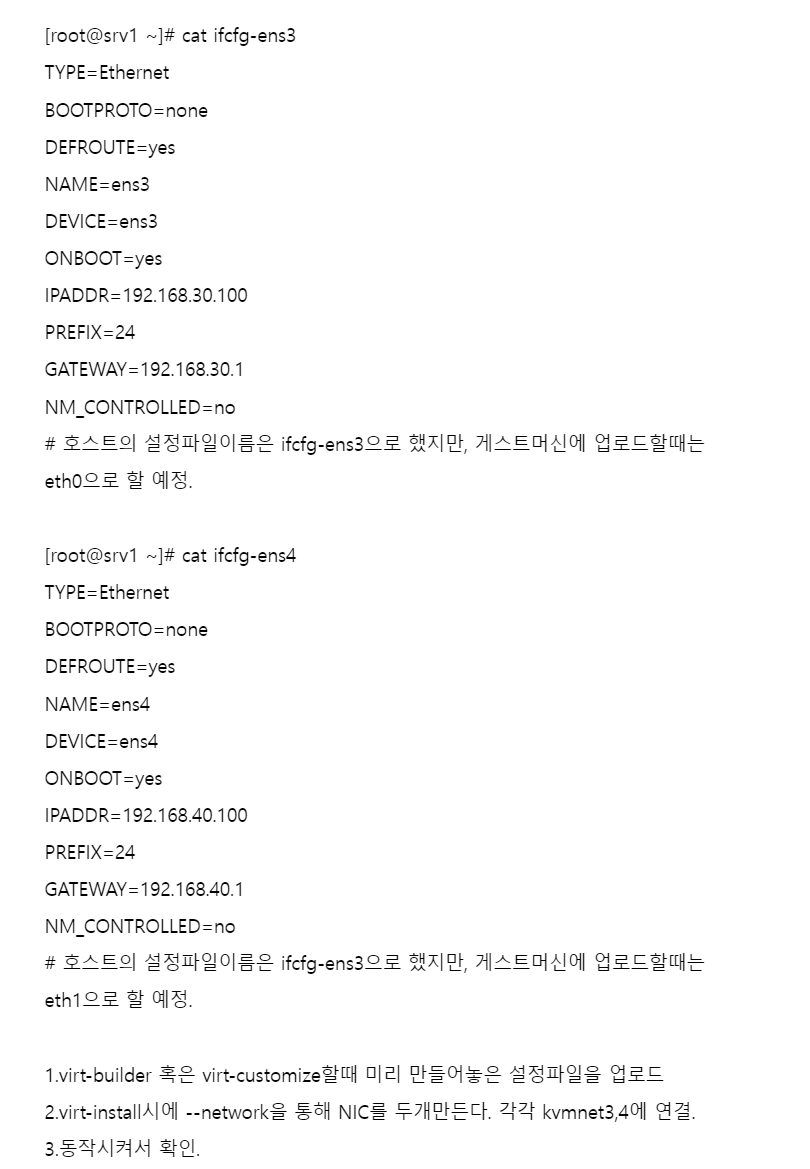

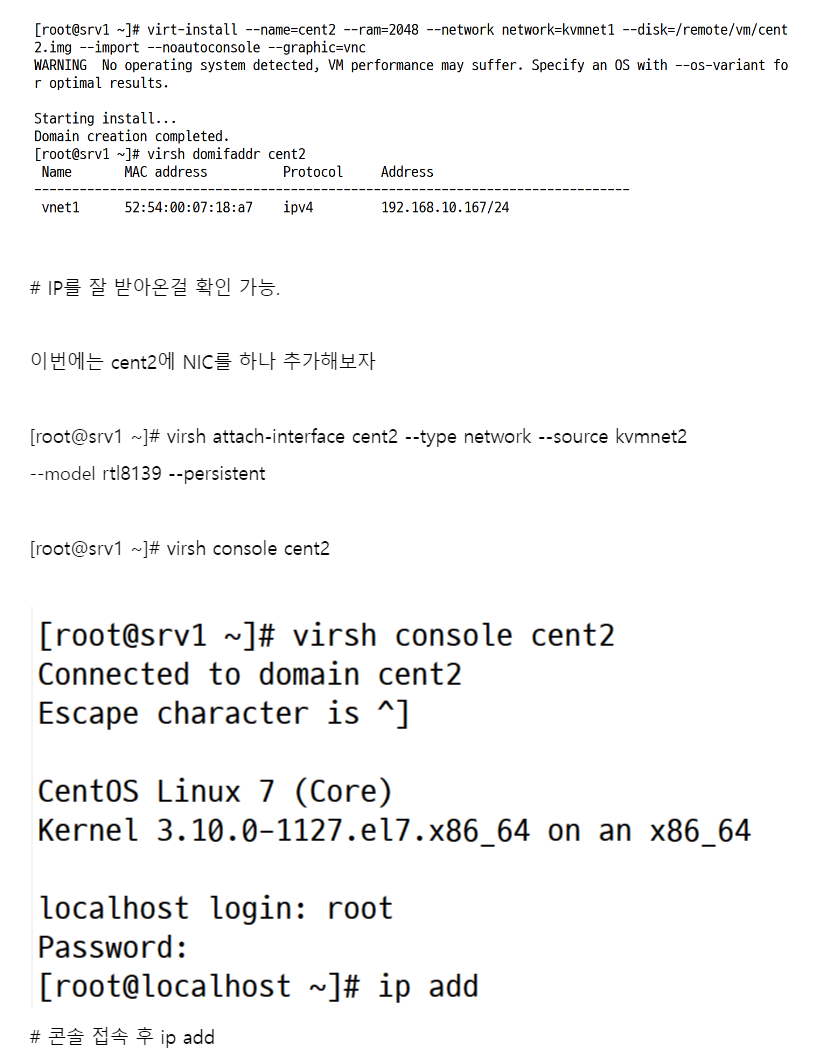

물리적 NIC

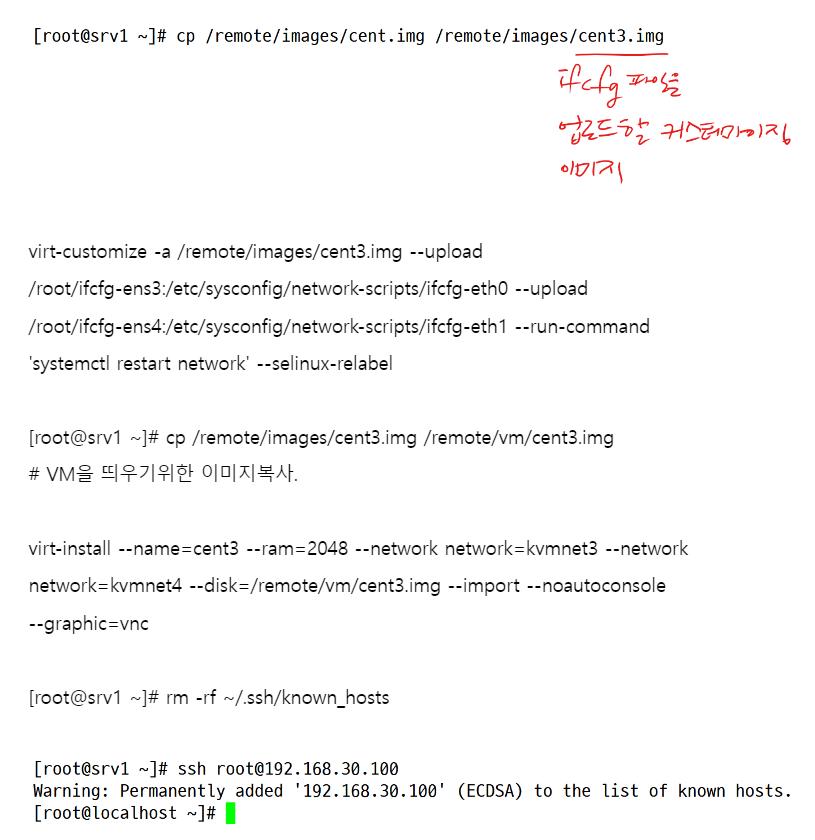

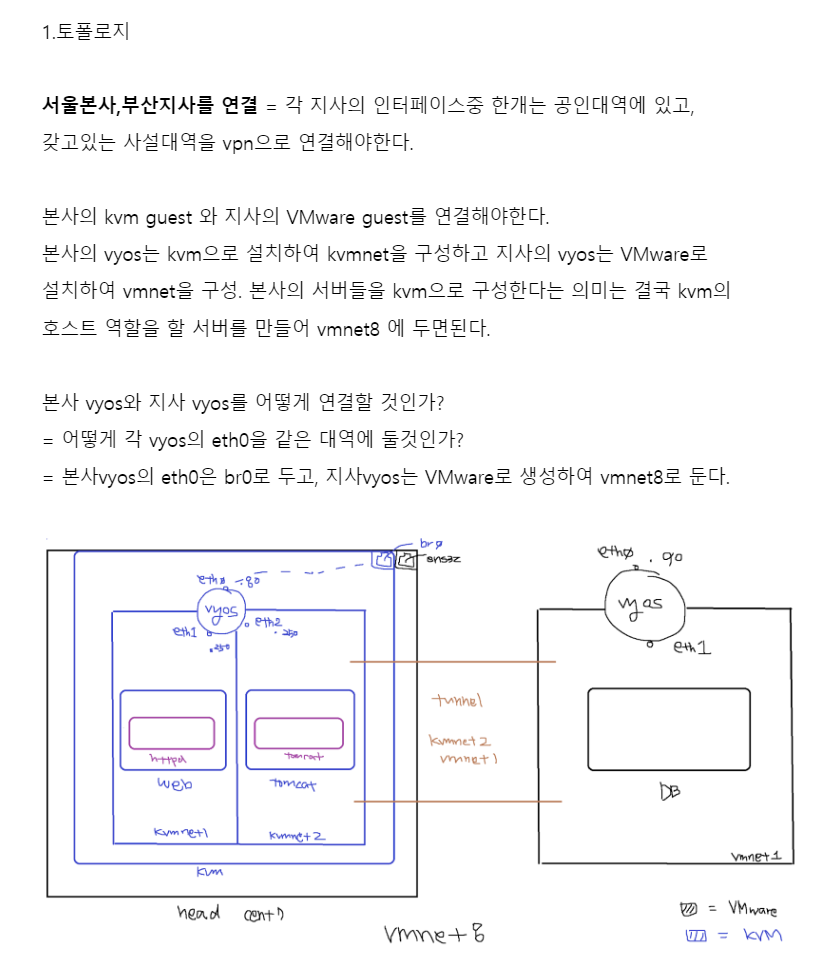

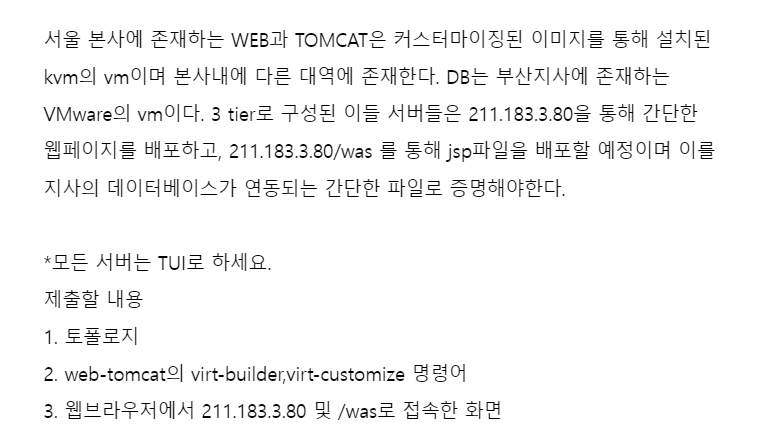

종합실습



<head cent7을 구성>



미니멀로 설치.



yum -y install bridge-utils net-tools virt-install virt-viewer virt-manager libguestfs* libvirt qemu-kvm wget unzip



[root@srv1 network-scripts]# cat ifcfg-br0

DEVICE=br0

TYPE=Bridge

BOOTPROTO=none

DEFROUTE=yes

NAME=br0

ONBOOT=yes

DNS1=8.8.8.8

IPADDR=211.183.3.100

PREFIX=24

GATEWAY=211.183.3.2



[root@srv1 network-scripts]# cat ifcfg-eth0

TYPE=Ethernet

DEVICE=eth0

ONBOOT=yes

BRIDGE=br0



cat <<EOF > kvmnet1.xml

<network>

  <name>kvmnet1</name>

  <bridge name='virbr1' stp='on' delay='0'/>

  <domain name='kvmnet1'/>

  <ip address='192.168.10.1' netmask='255.255.255.0'>

  </ip>

</network>

EOF



cat <<EOF > kvmnet2.xml

<network>

  <name>kvmnet2</name>

  <bridge name='virbr2' stp='on' delay='0'/>

  <domain name='kvmnet2'/>

  <ip address='192.168.20.1' netmask='255.255.255.0'>

  </ip>

</network>

EOF



[root@srv3 network-scripts]# systemctl restart network

[root@srv3 ~]# systemctl restart libvirtd

[root@srv3 ~]# systemctl enable libvirtd

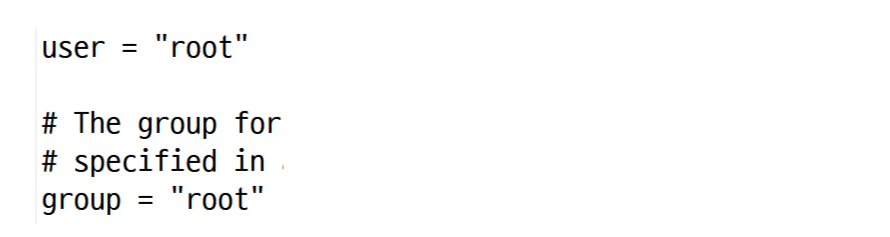

[root@srv3 ~]# vi /etc/libvirt/qemu.conf



[root@srv3 ~]# virsh net-define /etc/libvirt/qemu/networks/kvmnet1.xml

[root@srv3 ~]# virsh net-define /etc/libvirt/qemu/networks/kvmnet2.xml



[root@srv3 ~]# virsh net-start kvmnet1

[root@srv3 ~]# virsh net-start kvmnet2



[root@srv3 ~]# virsh net-autostart kvmnet2

[root@srv3 ~]# virsh net-autostart kvmnet1

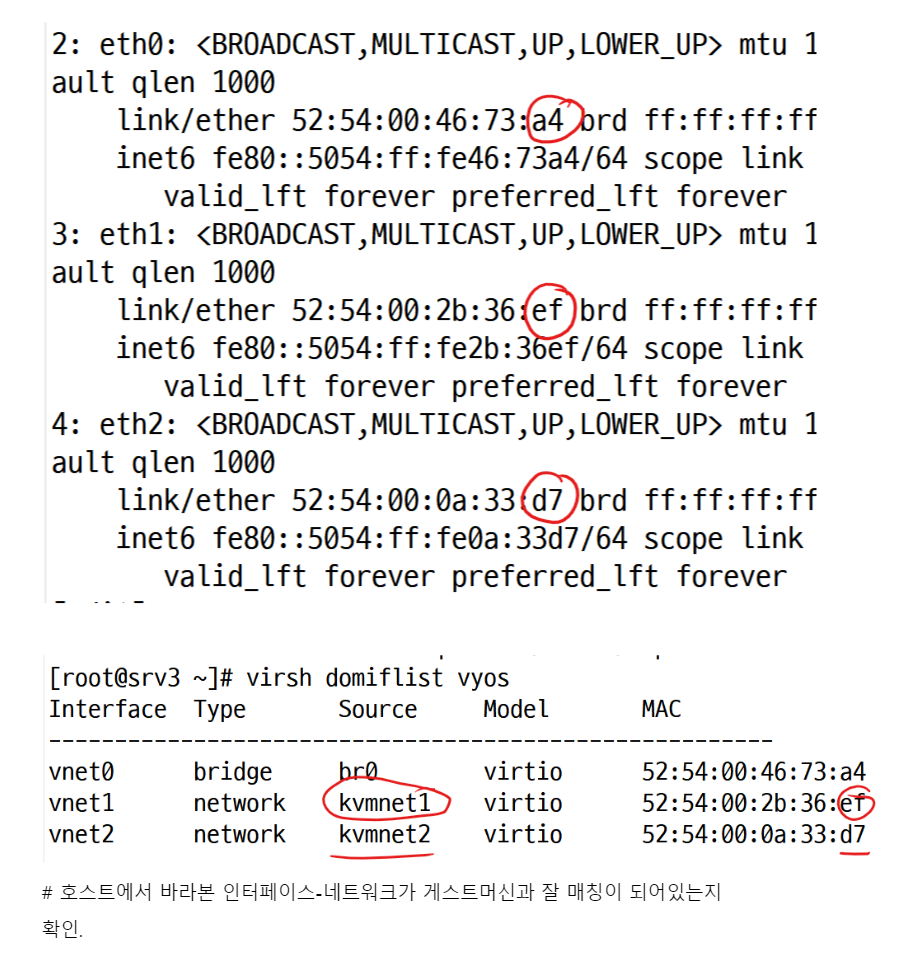

[root@srv3 ~]# virt-install --name vyos --vcpus 2 --ram 512 --cdrom=/remote/images/vyos.iso --disk path=/remote/vm/vyos.img,size=2 --noautoconsole --graphic vnc --network bridge=br0 --network network=kvmnet1 --network network=kvmnet2 --os-variant=debian8



# head vyos 설치.



[root@srv3 ~]# virsh console vyos

vyos@vyos# set int eth eth0 add 211.183.3.80/24

# 외부에서 접속할 주소가 80이라고 했기때문에



vyos@vyos# set int eth eth1 add 192.168.10.250/24

vyos@vyos# set int eth eth2 add 192.168.20.250/24

vyos@vyos# set ser ssh port 22

vyos@vyos# set system gateway-address 211.183.3.2





<VYOS-BRANCH>



set int eth eth0 add 211.183.3.90/24

set int eth eth1 add 192.168.30.250/24

set system gate 211.183.3.2

set ser ssh port 22

#기본 설정



set vpn ipsec esp-group branch-esp compression disable

set vpn ipsec esp-group branch-esp lifetime 1800

set vpn ipsec esp-group branch-esp mode tunnel

set vpn ipsec esp-group branch-esp pfs enable

set vpn ipsec esp-group branch-esp proposal 1 encryption aes256

set vpn ipsec esp-group branch-esp proposal 1 hash sha256

set vpn ipsec ike-group branch-ike ikev2-reauth no

set vpn ipsec ike-group branch-ike key-exchange ikev1

set vpn ipsec ike-group branch-ike lifetime 3600

set vpn ipsec ike-group branch-ike proposal 1 encryption aes256

set vpn ipsec ike-group branch-ike proposal 1 hash sha256

set vpn ipsec ipsec-interfaces interface eth0

set vpn ipsec site-to-site peer 211.183.3.80 authentication mode pre-shared-secret

set vpn ipsec site-to-site peer 211.183.3.80 authentication pre-shared-secret rapa

set vpn ipsec site-to-site peer 211.183.3.80 ike-group branch-ike

set vpn ipsec site-to-site peer 211.183.3.80 local-address 211.183.3.90

set vpn ipsec site-to-site peer 211.183.3.80 tunnel 0 allow-nat-networks disable

set vpn ipsec site-to-site peer 211.183.3.80 tunnel 0 allow-public-networks disable

set vpn ipsec site-to-site peer 211.183.3.80 tunnel 0 esp-group branch-esp

set vpn ipsec site-to-site peer 211.183.3.80 tunnel 0 local prefix 192.168.30.0/24

set vpn ipsec site-to-site peer 211.183.3.80 tunnel 0 remote prefix 192.168.20.0/24

#vpn



set nat source rule 9 destination address 192.168.20.0/24

set nat source rule 9 exclude

set nat source rule 9 outbound-interface eth0

set nat source rule 9 source address 192.168.30.0/24



set nat source rule 10 outbound-interface eth0

set nat source rule 10 source address 192.168.30.0/24

set nat source rule 10 translation address masquerade

#nat

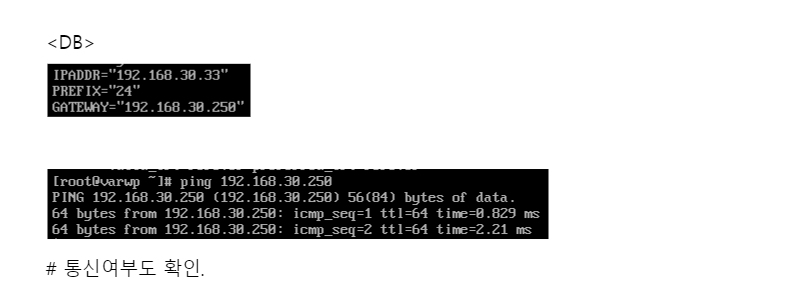

[root@varwp ~]# yum -y install mariadb-server

mysql

create database;

grant all privileges on tomdb.* to tomuser@'%' identified by '1234';



<tomcat>

[root@head-cent tomcat]# yum -y install java-11-openjdk

[root@head-cent tomcat]# wget http://dlcdn.apache.org/tomcat/tomcat-10/v10.1.23/bin/apache-tomcat-10.1.23.zip

[root@head-cent ~]# mv apache-tomcat-10.1.23 tomcat

[root@head-cent ~]# chmod 777 -R tomcat/



[root@head-cent tomcat]# cd /root/tomcat/lib/

[root@head-cent lib]# wget https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.23/mysql-connector-java-8.0.23.jar

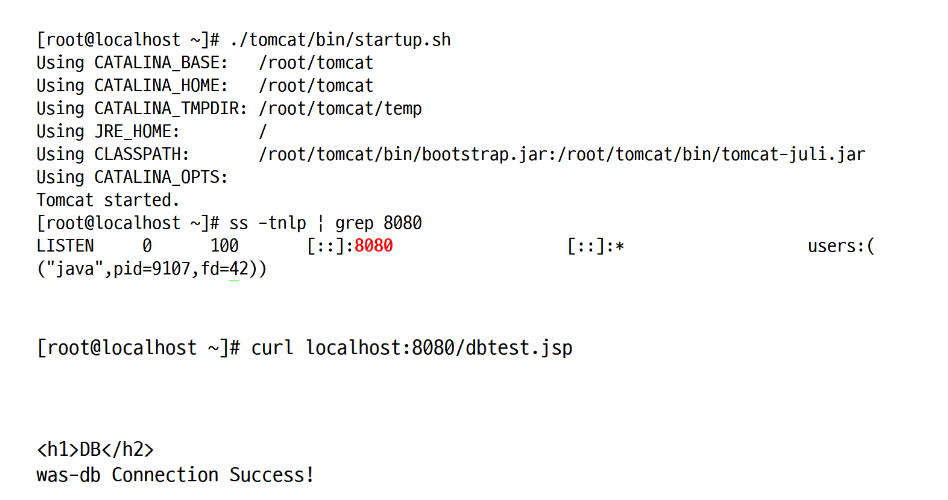

톰캣이 동작하는지 확인.

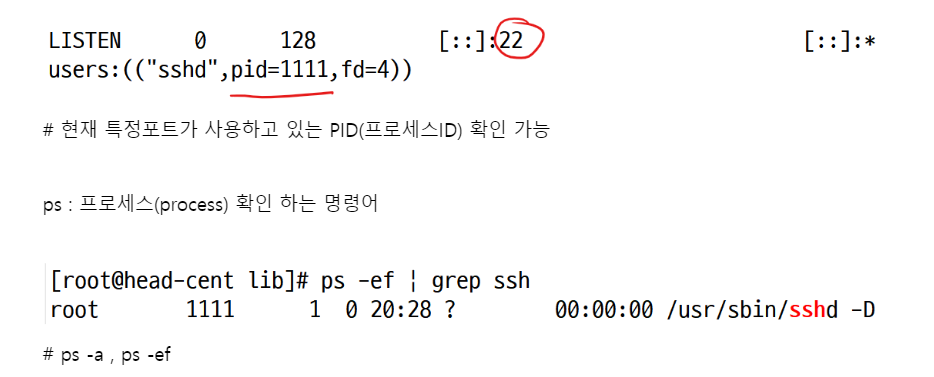

ss : socket statistics 소켓의 상태 확인.



[root@head-cent lib]# ss -tnlp



t : tcp

l : listen

p : port

n : 주소를 숫자로 표현.



[root@head-cent tomcat]# ./bin/startup.sh



yum remove java-1* -y

# 기존에 깔려있던 자바 삭제.



yum -y install java-11-openjdk

# 자바 설치





cat <<EOF > dbtest.jsp



<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>

<%@ page import="java.sql.*"%>

<h1>DB</h2>

<%

        Connection conn=null;

        try{

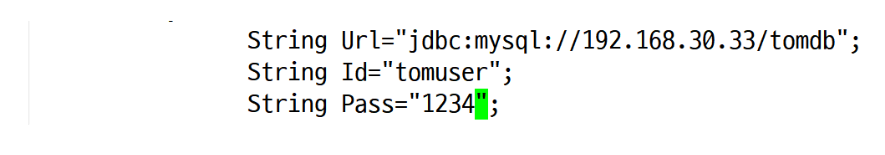

                String Url="jdbc:mysql://<DB주소>/<DB이름>";

                String Id="<DB유저>";

                String Pass="<유저암호>";



                Class.forName("com.mysql.jdbc.Driver");

                conn=DriverManager.getConnection(Url,Id,Pass);

                out.println("was-db Connection Success!");

        }catch(Exception e) {

                e.printStackTrace();

}

%>

EOF

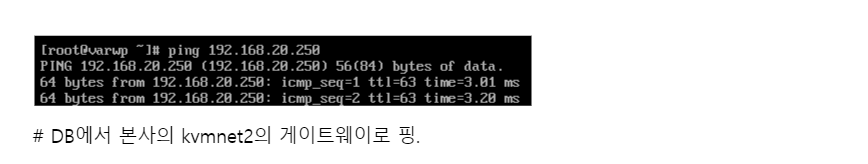

<VPN 구성>



<head>



set vpn ipsec esp-group head-esp compression disable

set vpn ipsec esp-group head-esp lifetime 1800

set vpn ipsec esp-group head-esp mode tunnel

set vpn ipsec esp-group head-esp pfs enable

set vpn ipsec esp-group head-esp proposal 1 encryption aes256

set vpn ipsec esp-group head-esp proposal 1 hash sha256

set vpn ipsec ike-group head-ike ikev2-reauth no

set vpn ipsec ike-group head-ike key-exchange ikev1

set vpn ipsec ike-group head-ike lifetime 3600

set vpn ipsec ike-group head-ike proposal 1 encryption aes256

set vpn ipsec ike-group head-ike proposal 1 hash sha256

set vpn ipsec ipsec-interfaces interface eth0

set vpn ipsec site-to-site peer 211.183.3.90 authentication mode pre-shared-secret

set vpn ipsec site-to-site peer 211.183.3.90 authentication pre-shared-secret rapa

set vpn ipsec site-to-site peer 211.183.3.90 ike-group head-ike

set vpn ipsec site-to-site peer 211.183.3.90 local-address 211.183.3.80

set vpn ipsec site-to-site peer 211.183.3.90 tunnel 0 allow-nat-networks disable

set vpn ipsec site-to-site peer 211.183.3.90 tunnel 0 allow-public-networks disable

set vpn ipsec site-to-site peer 211.183.3.90 tunnel 0 esp-group head-esp

set vpn ipsec site-to-site peer 211.183.3.90 tunnel 0 local prefix 192.168.20.0/24

set vpn ipsec site-to-site peer 211.183.3.90 tunnel 0 remote prefix 192.168.30.0/24



set nat source rule 9 destination address 192.168.30.0/24

set nat source rule 9 exclude

set nat source rule 9 outbound-interface eth0

set nat source rule 9 source address 192.168.20.0/24



set nat source rule 10 outbound-interface eth0

set nat source rule 10 source address 192.168.20.0/24

set nat source rule 10 translation address masquerade

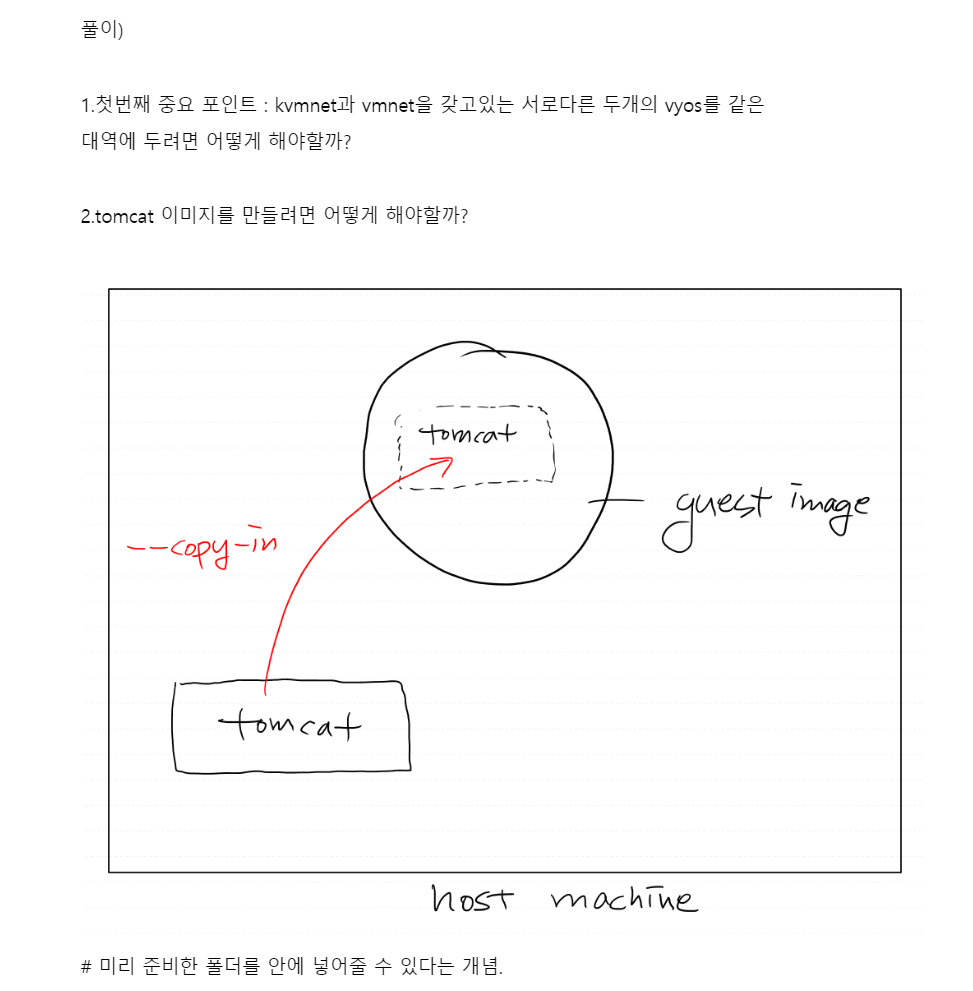

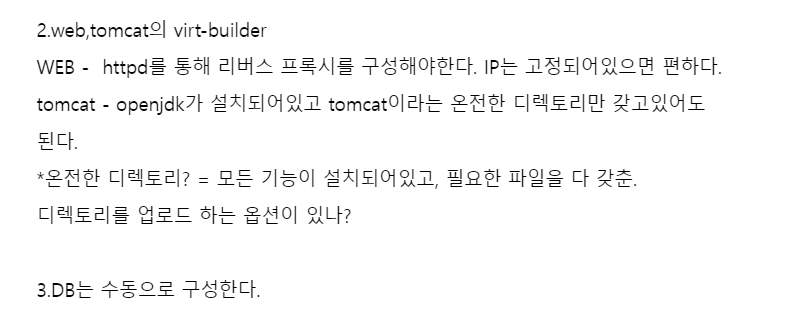

톰캣 커스터마이징 이미지 생성시 해야할것.

1.tomcat이라는 폴더를 내부로 옮겨줌(부팅전)

--copy-in /root/tomcat:/root



2.openjdk설치(부팅전)

--run-command 'yum -y install java-11-openjdk'



3.ifcfg 파일 넣어줘야함.(부팅전)

[root@head-cent ~]# vi /root/tomcat/ifcfg-eth0



TYPE=Ethernet

BOOTPROTO=none

DEFROUTE=yes

NAME=ens3

DEVICE=ens3

ONBOOT=yes

IPADDR=192.168.20.88

PREFIX=24

GATEWAY=192.168.20.250

DNS1=8.8.8.8

NM_CONTROLLED=no



--upload  /root/tomcat/ifcfg-eth0:/etc/sysconfig/network-scripts/ifcfg-eth0

--run-command 'systemctl restart network'

# 필요한 옵션.



4.방화벽(첫부팅시), 셀리눅스 off(부팅전)



--run-command 'sed -i s/SELINUX=enforcing/SELINUX=disabled/g /etc/selinux/config' --firstboot-command 'systemctl disable --now firewalld'



5.tomcat동작(첫부팅시)



--firstboot-command '/root/tomcat/bin/startup.sh'




virt-customize -a /remote/images/centtom.img --copy-in /root/tomcat:/root --upload  /root/tomcat/ifcfg-eth0:/etc/sysconfig/network-scripts/ifcfg-eth0 --run-command 'systemctl restart network' --run-command 'sed -i s/SELINUX=enforcing/SELINUX=disabled/g /etc/selinux/config' --firstboot-command 'systemctl disable --now firewalld' --selinux-relabel --run-command 'yum -y install java-11-openjdk' --firstboot-command '/root/tomcat/bin/startup.sh'



# tomcat 이미지 커스터마이징



virt-install --name=centtom --ram=2048 --network network=kvmnet2 --disk=/remote/images/centtom.img --import --noautoconsole --graphic=vnc



# kvmnet2 에 설치.



virsh console centtom

선후관계를 생각했을때



run : 이미지를 생성할때 실행할 명령어 (부팅이전)

firstboot : 첫부팅시에 실행될 명령어 (부팅이후)



이므로, selinux같은것들은 미리 비활성화를 시켜야하므로 --run-command로 하고, 톰캣을 동작시키는 스크립트의 경우 --firstboot-command로.

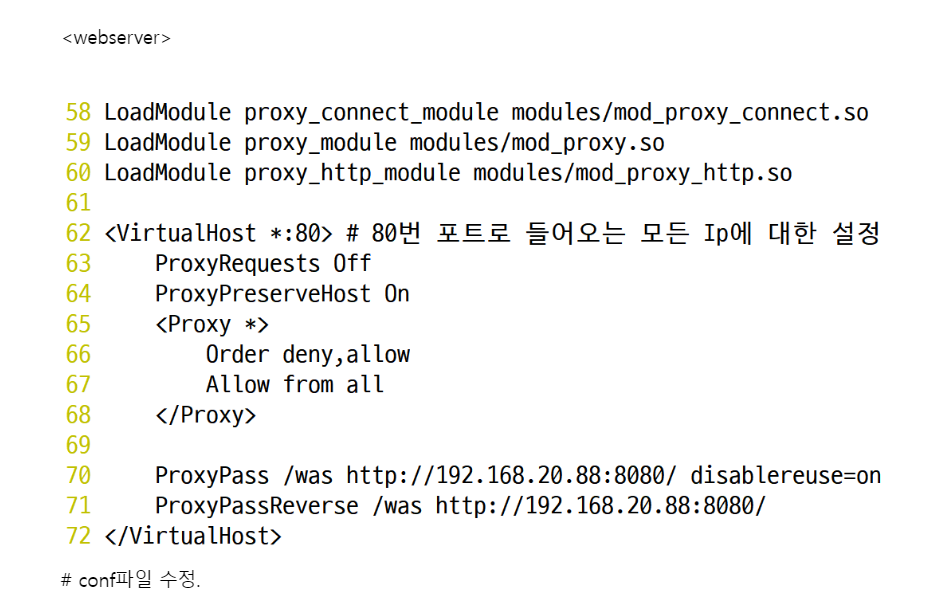

# conf파일 수정.



LoadModule proxy_connect_module modules/mod_proxy_connect.so

LoadModule proxy_module modules/mod_proxy.so

LoadModule proxy_http_module modules/mod_proxy_http.so



<VirtualHost *:80> # 80번 포트로 들어오는 모든 Ip에 대한 설정

    ProxyRequests Off

    ProxyPreserveHost On

    <Proxy *>

        Order deny,allow

        Allow from all

    </Proxy>



    ProxyPass /was http://192.168.20.88:8080/ disablereuse=on

    ProxyPassReverse /was http://192.168.20.88:8080/

</VirtualHost>



[root@head-cent ~]# cp /etc/httpd/conf/httpd.conf /root/httpd.conf

# 위의 내용을 추가후, httpd.conf파일을 /root에 복사해둔다.



방화벽,셀리눅스 off,

웹서버 설치, httpd.conf 수정, 동작.



vi /root/ifcfg-eth0



TYPE=Ethernet

BOOTPROTO=none

DEFROUTE=yes

NAME=ens3

DEVICE=ens3

ONBOOT=yes

IPADDR=192.168.10.80

PREFIX=24

GATEWAY=192.168.10.250

NM_CONTROLLED=no



# root에 ifcfg-eth0를 만들어준다.



virt-customize -a /remote/images/centweb.img --run-command 'yum -y install httpd' --upload /root/httpd.conf:/etc/httpd/conf/httpd.conf --upload /root/ifcfg-eth0:/etc/sysconfig/network-scripts/ifcfg-eth0 --run-command 'systemctl restart network && systemctl restart httpd && systemctl enable httpd' --run-command 'sed -i s/SELINUX=enforcing/SELINUX=disabled/g /etc/selinux/config' --firstboot-command 'systemctl disable --now firewalld' --selinux-relabel --firstboot-command '/root/tomcat/bin/startup.sh'



virt-install --name=centweb --ram=2048 --network network=kvmnet1 --disk=/remote/images/centweb.img --import --noautoconsole --graphic=vnc

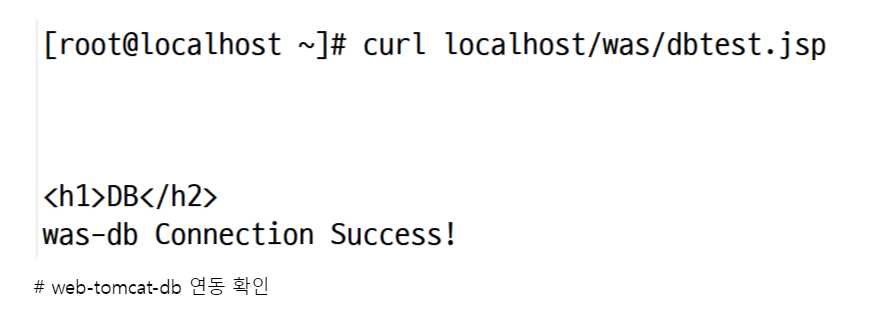

# web-tomcat-db 연동 확인



vyos@vyos# set nat destination rule 100 inbound-interface eth0

vyos@vyos# set nat destination rule 100 destination port 80

vyos@vyos# set nat destination rule 100 translation  address 192.168.10.80

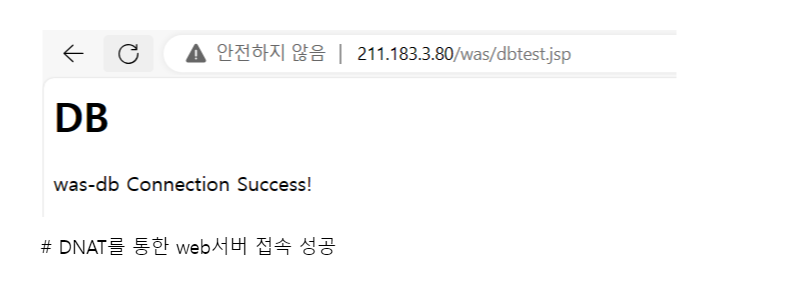

# 웹서버 접속을 위한 DNAT 설정
