[06.28] Kubernetes configMap, Secret, 3-tier-architecture

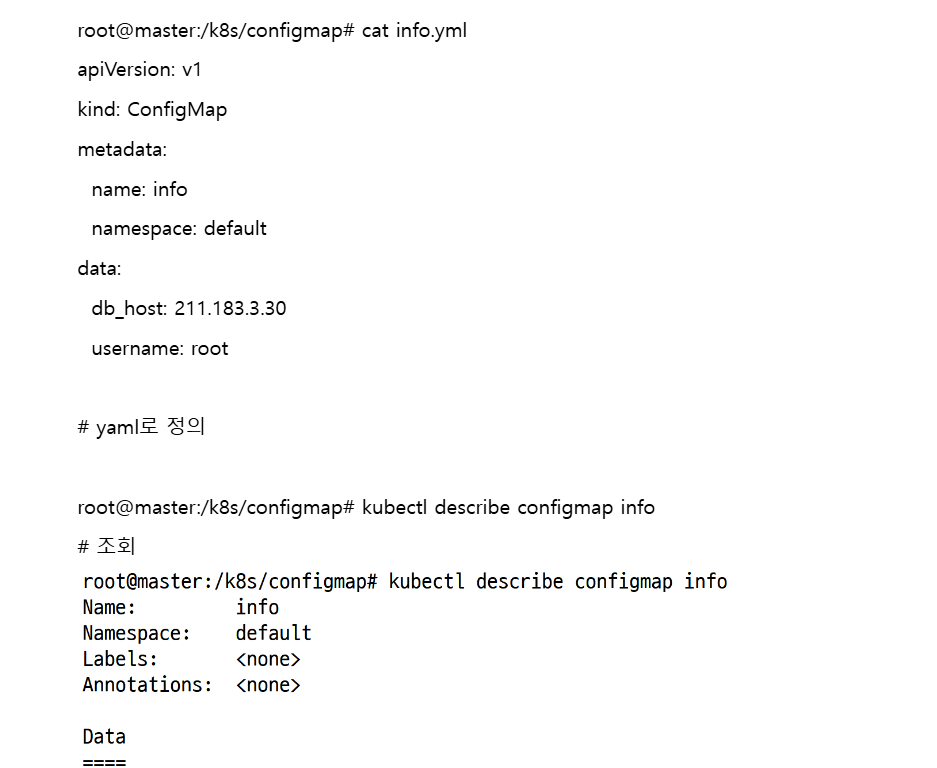

root@master:/k8s/configmap# cat info.yml

apiVersion: v1

kind: ConfigMap

metadata:

  name: info

  namespace: default

data:

  db_host: 211.183.3.30

  username: root

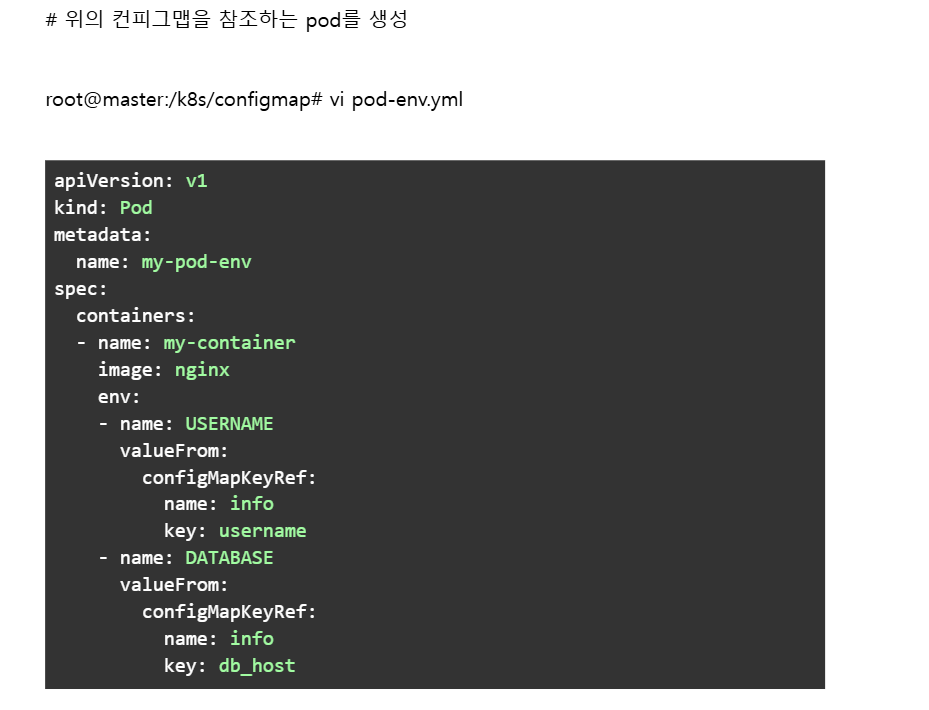

apiVersion: v1
kind: Pod
metadata:
  name: my-pod-env
spec:
  containers:
  - name: my-container
    image: nginx
    env:
    - name: USERNAME
      valueFrom:
        configMapKeyRef:
          name: info
          key: username
    - name: DATABASE
      valueFrom:
        configMapKeyRef:
          name: info
          key: db_host





apiVersion: v1 kind: Secret metadata:   name: sec type: Opaque stringData:   password: test123

apiVersion: v1 kind: Pod metadata:   name: pod-sec spec:   containers:   - name: sec-con     image: nginx     envFrom:     - secretRef:         name: sec
